Description

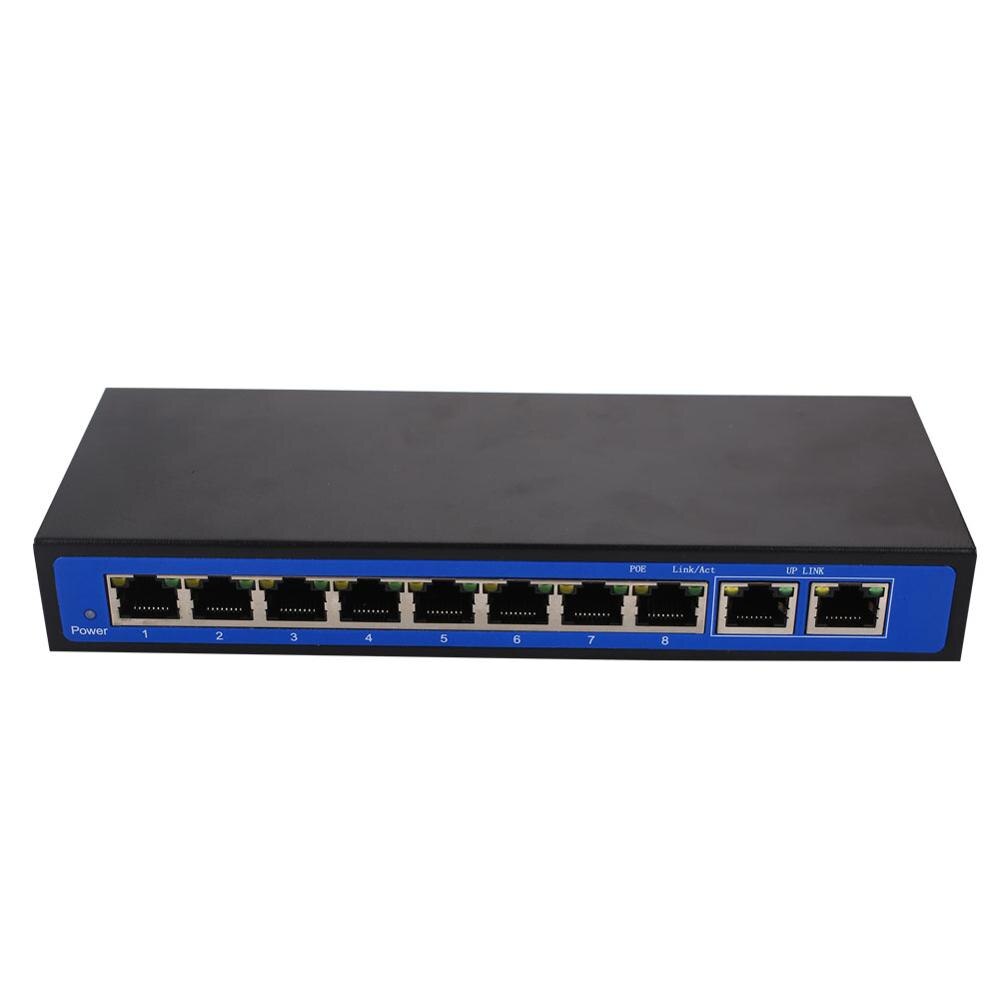

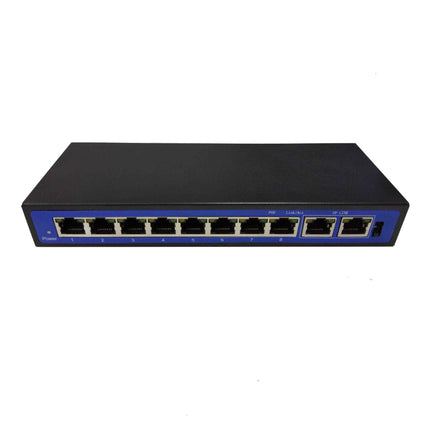

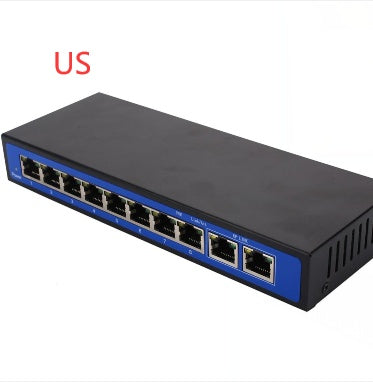

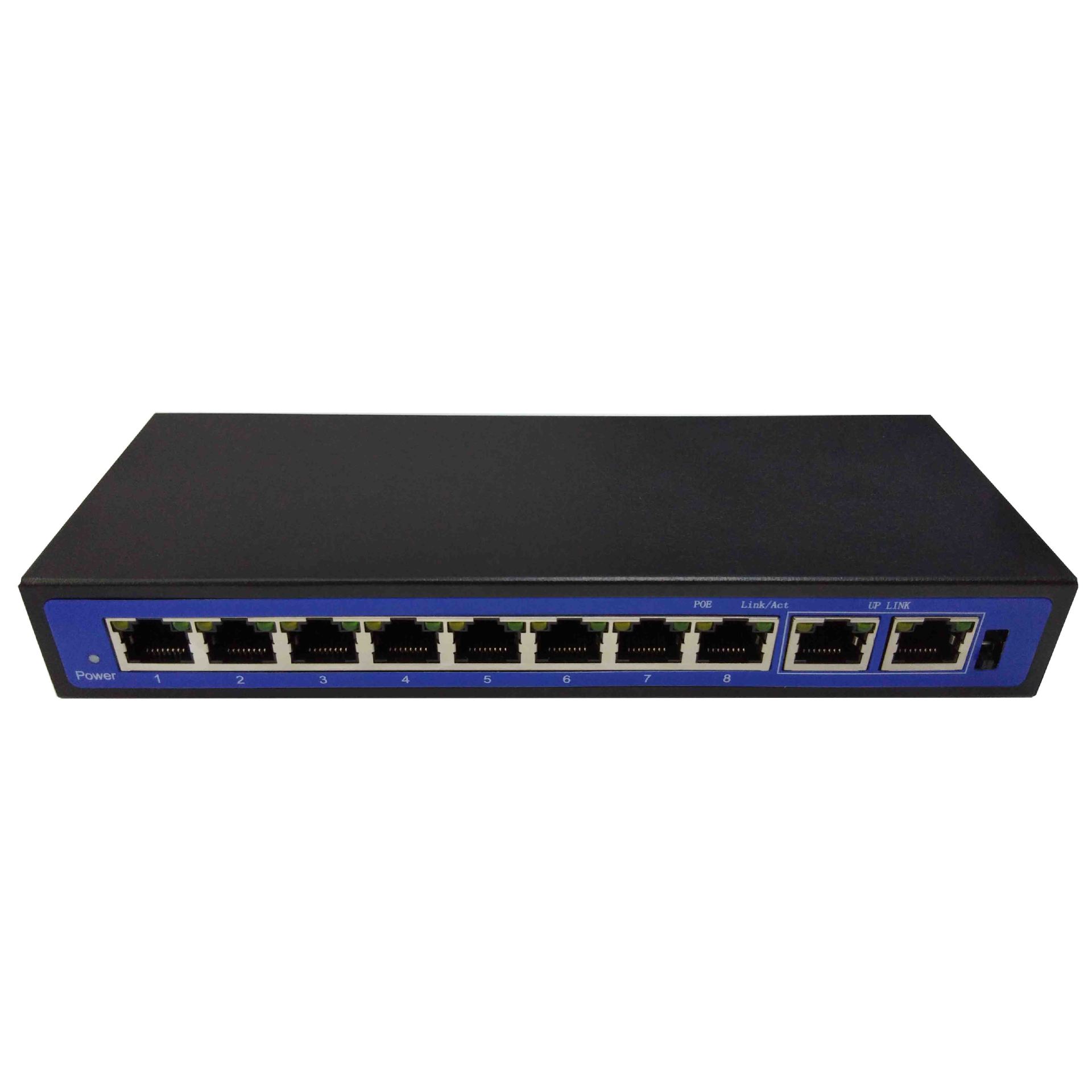

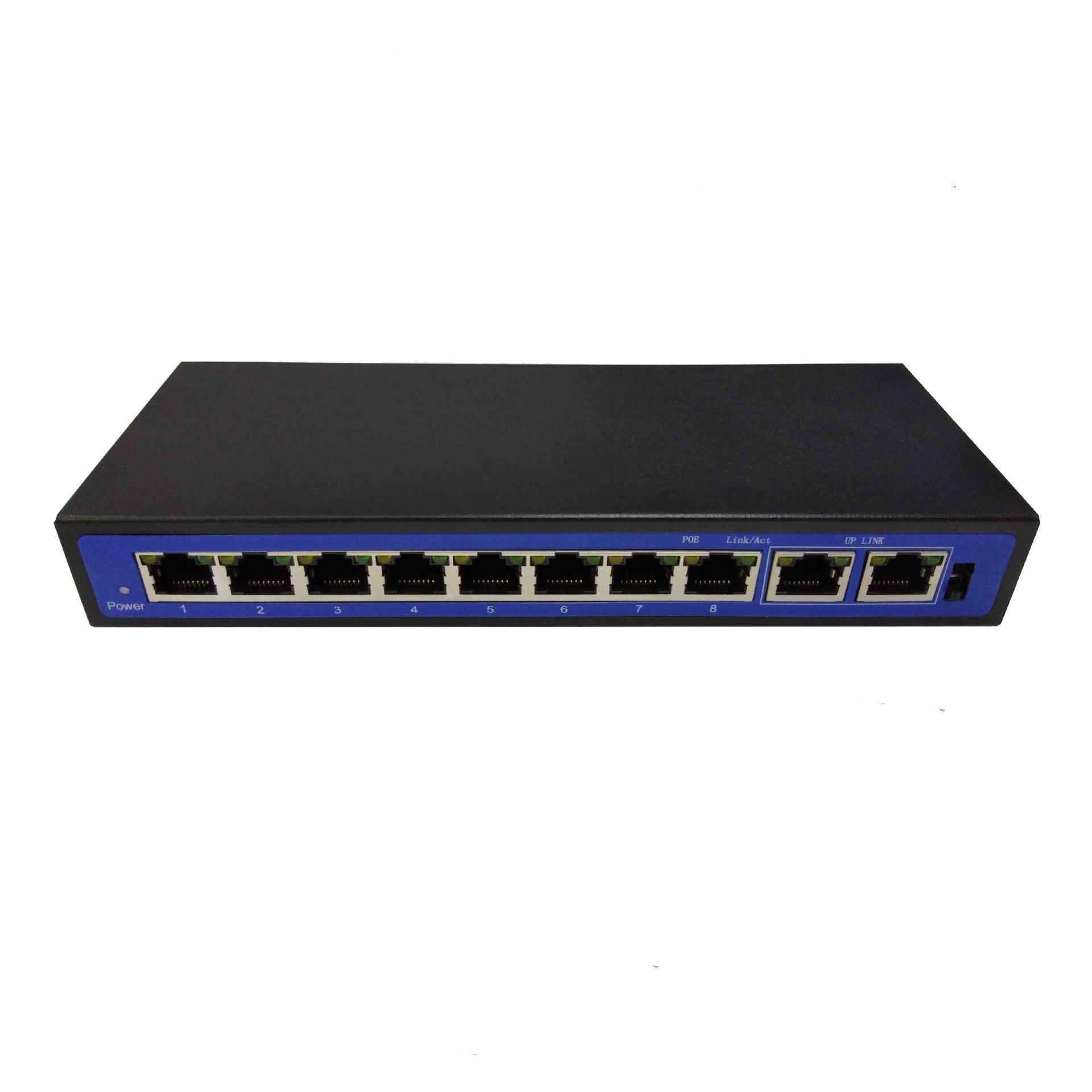

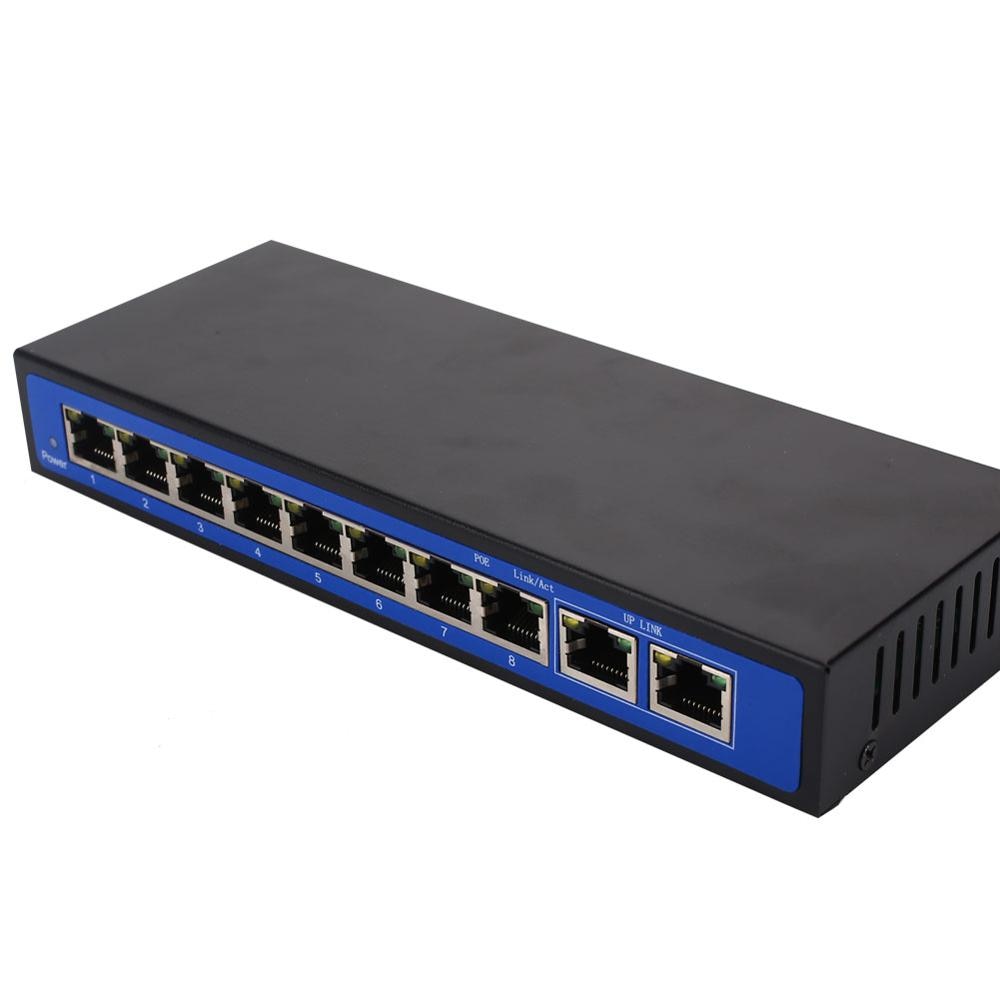

Product name: 8+2 electric POE power supply switch
Product model: ZWD-8+2BZDW
POE switch port: 1-8 ports support IEEE 802.3af (15.4W) network power supply
SEP port not supported
POE switch port output power: 15.4W/30W IEEE802.3af/at
POE switch transmission wire core: 1/2+, 3/6-pair (optional 4/5+, 7/8-pair)
Port description: 8 Ethernet ports; 2 uplink Ethernet ports
POE switch connection standard: IEEE802.3af/IEEE802.3at
PoE switch power transmission distance: ≤200 meters
POE switch type: terminal jumper method
Network standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
Network medium: Category 5 and above unshielded twisted pair
Network signal distance: transmission ≤120 meters
Backplane bandwidth: 2.0Gbps
Forwarding method: store and forward
Forwarding rate: 10Base-T: 14880PPS/port 100Base-TX: 148800PPS/port
MAC address: 2KMAC
Port function: power supply priority mechanism, fast and forwarding, MAC automatic learning and aging
IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
Indicator light: Each port has 1 Link/Act and POE switch indicator
Each device has 1 Power indicator
Working temperature: 0℃～40℃
Storage temperature: —40℃～70℃
Working humidity: 10%～90%RH (no condensation)
Storage humidity: 5%～90%RH (no condensation)

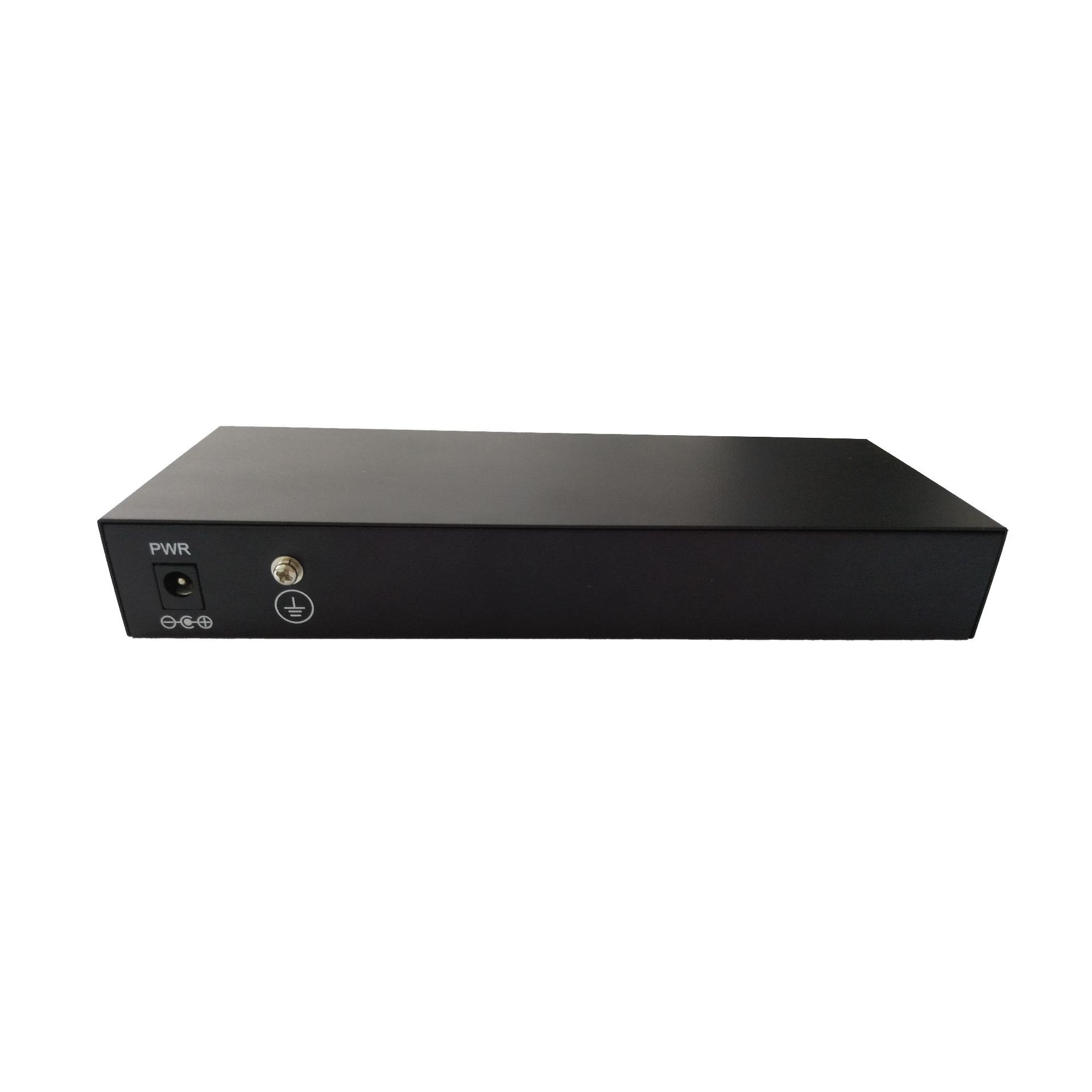

Power supply: external power adapter (input AC220V, output 48V 3A)
Whole machine power consumption: ≤ 150W

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
