Description

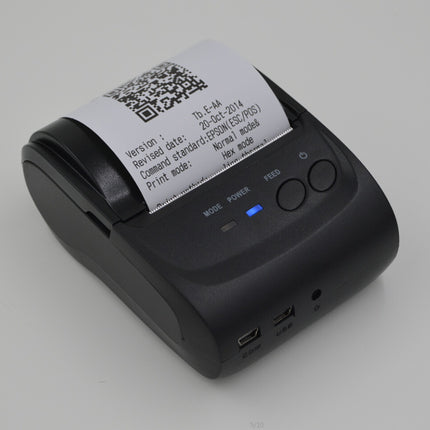

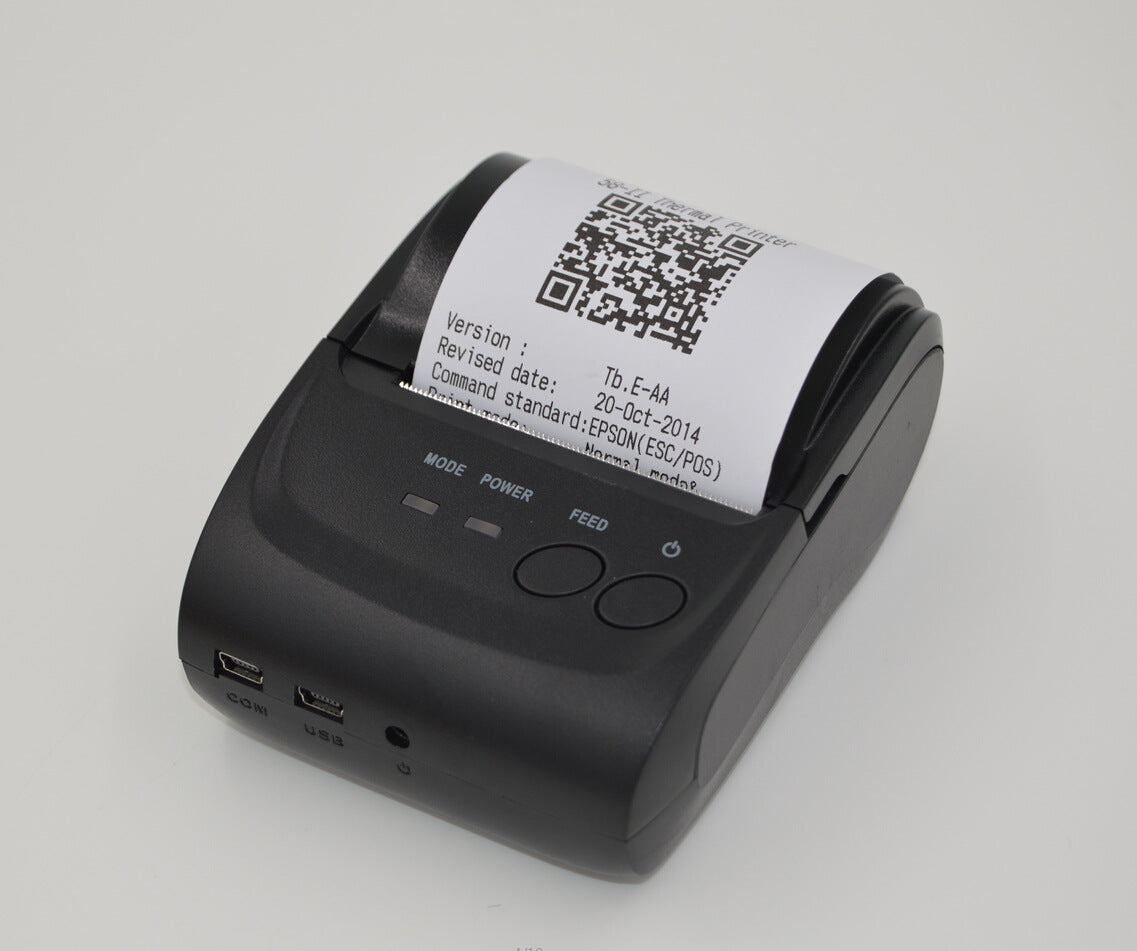

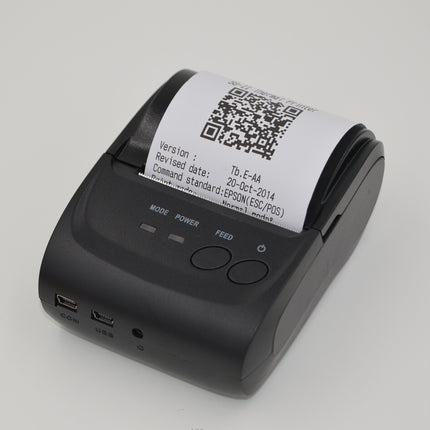

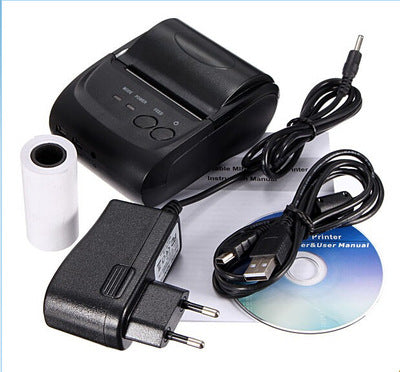

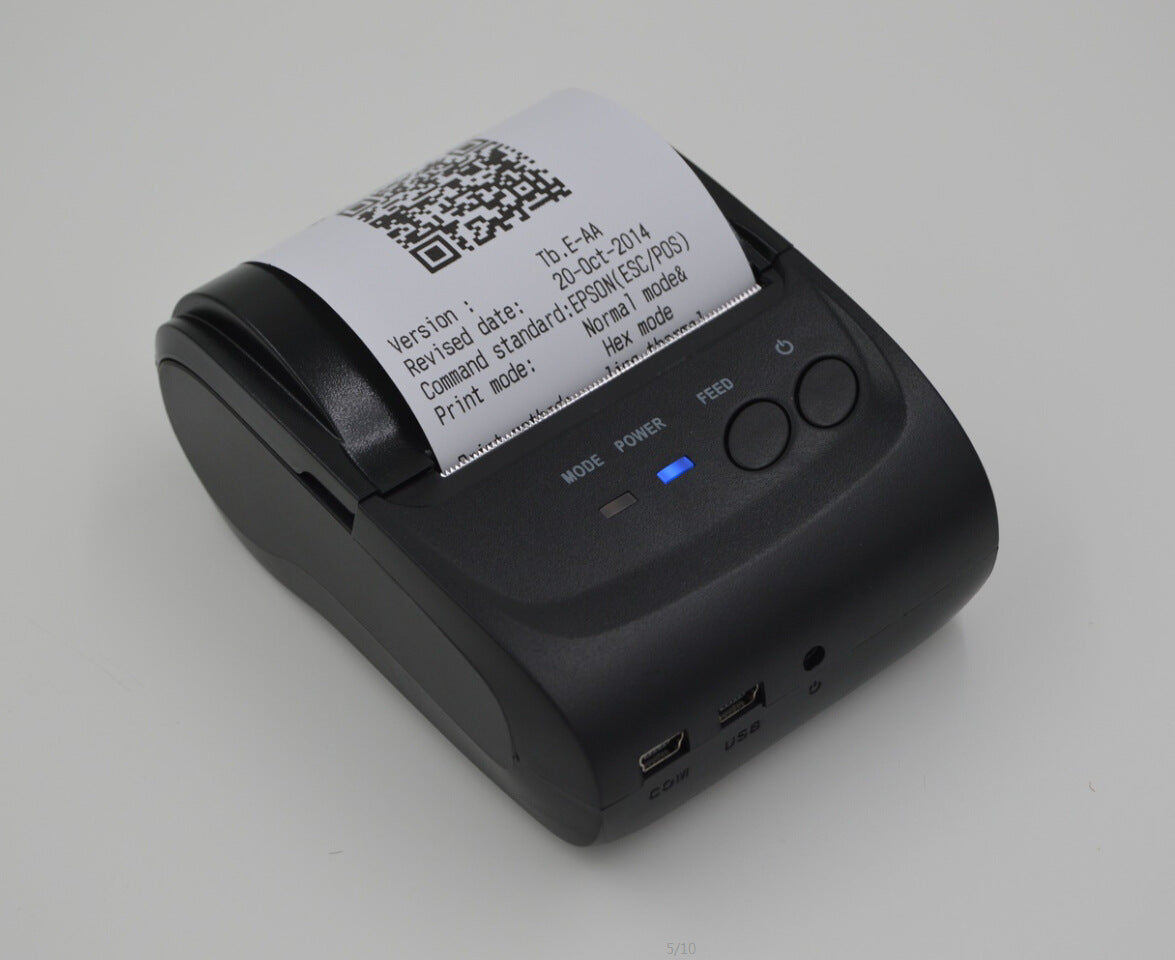

Mini Bluetooth Printer is a portable thermal printer that combines USB,RS-232 Serial and Bluetooth communication interface together, The printer could be powered by car charger, and rechargeable battery(depending on specified models) . These special characters make it successfully be applied to a variety of instruments, handheld data printing.
1-2.
Specification&Features
|
Item
|
Specification
|
|
Overall Dimension (W×D×H)
|
104×75×45mm
|
|
Weight
|
134g
|
|
Color
|
Dark gray
|
|
Effective print width
|
48mm
|
|
Print method
|
Thermal line printing
|
|
Print commands
|
ESC/POS
|
|
Print speed
|
Up to 90mm/sec
|
|
Resolution
|
8 dots/mm(203dpi)
|
|
Print font
|
12x24/24x24
|
|
Column capacity
|
32
/16
-column
|
|
Character size
|
1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)
|
|
Paper dimensions
|
58.0
±
0.1mm x
40.0mm
|
|
Paper thickness
|
0.06 to 0.08mm
|
|
Character set
|
Alphanumeric/ Chinese Kanji
|
|
Interface
|
USB, serial port, Bluetooth (optional)
|
|
Data buffer
|
Up to 5K bytes
|
|
Power Adapter
|
9V DC/2A
|
|
Battery Power
|
7.4V DC/1500mA
|
|
Other features
|
Paper detection, power detection, Manual shut down
|
|
Working conditions
|
Temp
:-10
℃
～
50
℃
,
Humidity
:10%
～
90%
|
|
Storage conditions
|
Temp
:-20
℃
～
70
℃
,
Humidity
:5%
～
95%
|
1-3. Application area
Compared to the traditional thermal receipt printer, Mini printer has smaller body, more reliable capability, more steady printing and portable advantages. The Mini printer can work on a lot of locations, such as the TAXI bill printing, administrative fees receipt printing, post receipt printing, restaurant ordering information printing, online payment information printing, etc. With the rapid popularity of smart-mobile, Mini printer will be more widely used in the near future.
